Removing the top right and left cover in the engine compartment

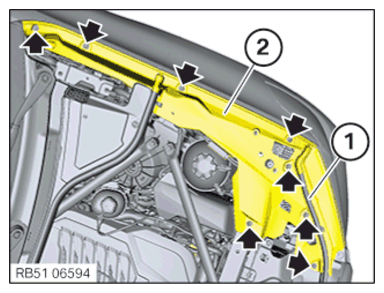

Remove the cover in the engine compartment on top

• Loosen the seal for hood (1) in the area of cover (2) using the special tool 2 298 505 on the clips.
• Release the expanding rivets (arrows).
• Guide out and remove the cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

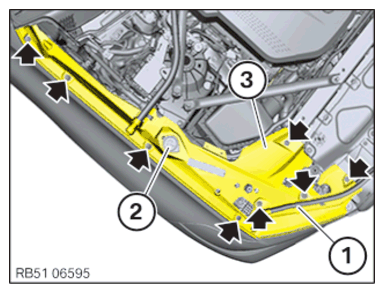

Remove the top right cover in the engine compartment

• Loosen the seal for hood (1) in the area of cover (3) using the special tool 2 298 505 on the clips.
• Release the expanding rivets (arrows).
• Open and remove the cover (2) of the washer fluid reservoir.
• Guide out and remove the cover (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
