Removing the left and right retaining frame
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the retaining frame

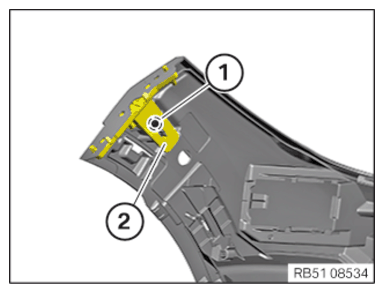

- Loosen screw (1).
- Feed out the holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

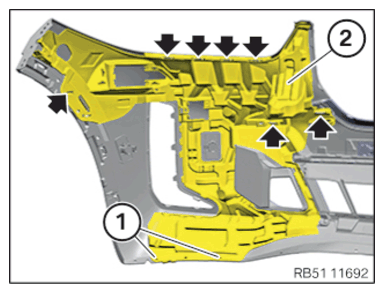

- Loosen blind rivet (1).
- Release the retaining frame (2) at the detents (arrows) and remove it.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
