Removing the front right door sill cover strip
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing front entrance cover strip
NOTE:
RISK OF DAMAGE
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
Bending of plastic components.
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.

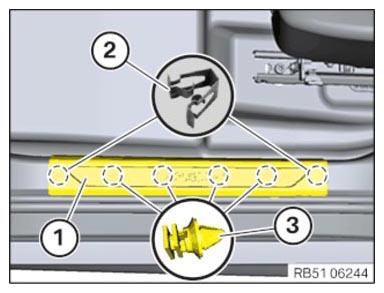

- Detach the front door sill cover strip (1) upwards from the clamps (2) and clips (3) using the special tool 0 496 569 (00 9 325).
- If applicable, disconnect the plug connection and remove the front door sill cover strip (1).
