Secure the juncture shaft in front on the front axle differential

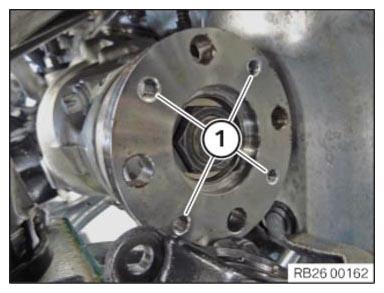

- Before installing the prop shaft on the front axle transmission, all 4 threads (1) in the front axle transmission flange must be freed of possible residue and contaminations and cleaned.
- Replace screws.
Parts: Screws

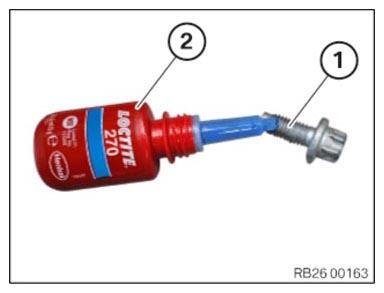

- A drop of Loctite 270 (2) must be given before the screw connection on each thread at the end of the respective screw (1).CONSUMABLE SPECIFICATION
Loctite 270 high-strength thread lock 10 ml, Tube 83 19 2 210 337 NOTE: TECHNICAL INFORMATION

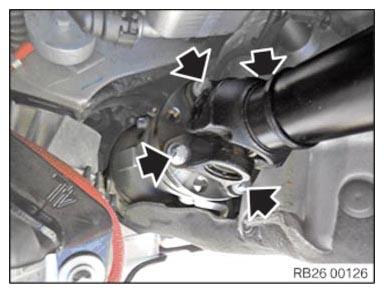

After the screw connection of the front prop shaft, a 30 minute hardening time must be ensured before the vehicle is operated again. - Position the propeller shaft in front on the front axle differential.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Prop shaft before the front axle differential Replace screws.
Joining torque and angle of rotation must be observed without fail.Snug torque 25 Nm Angle of rotation 45°
