Removing the roller cam follower of the intake camshaft
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

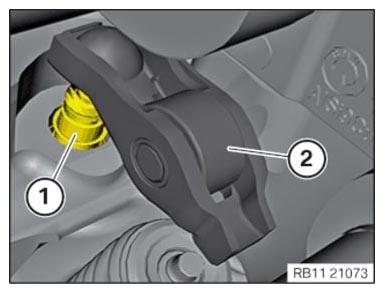

- Release and remove the roller cam follower (2) on the intake side from the hydraulic valve clearance compensating element.
- Place all roller cam followers in order in special tool 0 495 105 (11 4 480).
- Remove all hydraulic valve clearance compensating elements (1) to the top.
- Place all hydraulic valve clearance compensating elements into the special tool 0 495 105 (11 4 480)
along with the roller cam followers in order.
