Prepare the mobile table lift
Mobile lifting table

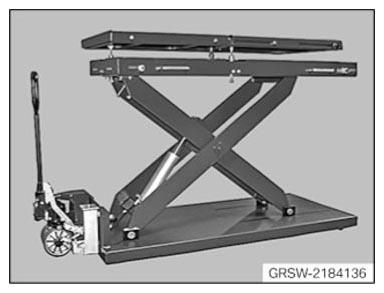

- Stage the mobile table lift 2 184 136.

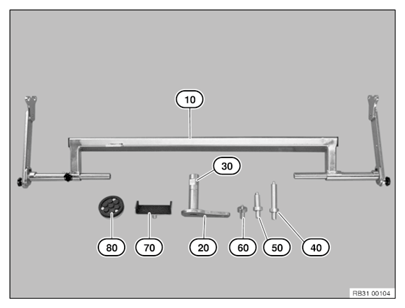

- Place the mounting element from the set of special tools 2 305 379
ready.

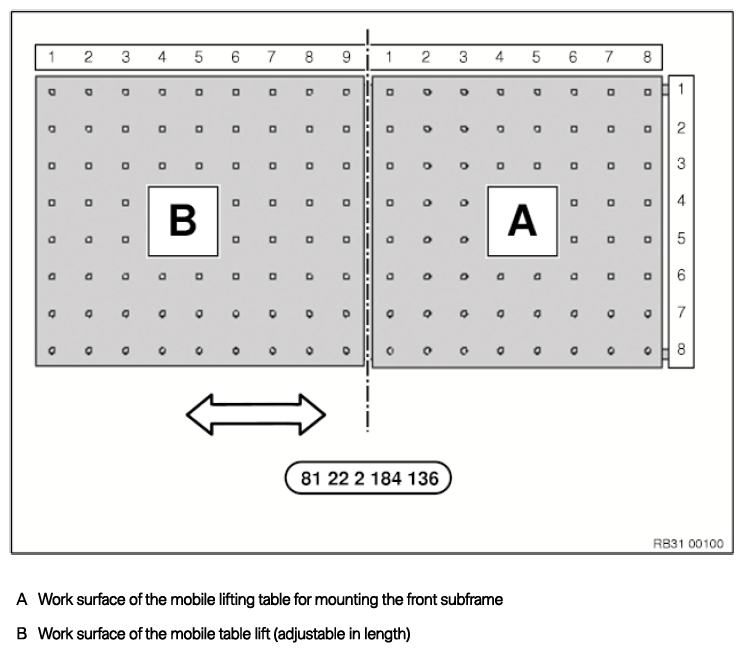

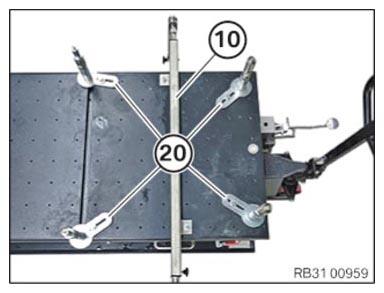

- Position mounting elements (20) on the work surface A
of the mobile lifting table.
- Front front subframe: 7/2 and 7/7
- Rear front subframe: 1/1 and 1/8
- Position mount for the swivel bearing (10) on the work surface A
of mobile lifting table at coordinates 4/1
and 5/8.

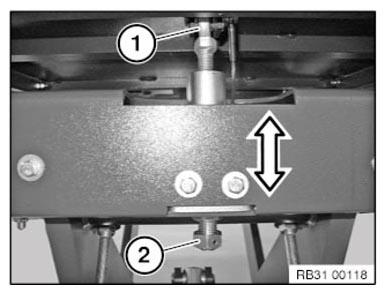

- Adjust inclination of the lifting table (1) using the adjustment screw (2) until the bubble level of the lifting table (1) indicates the correct position.
