Loosening and tying up brake caliper, left and right

NOTE: Perform the steps on the right and left side.

Detaching brake caliper and tying up

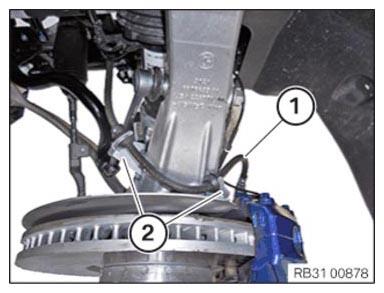

Release the brake hose (1) from the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

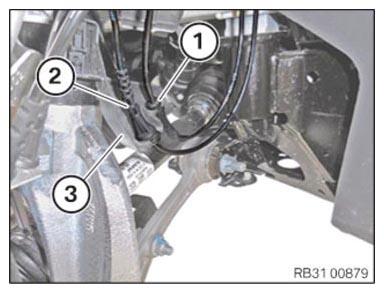

Remove cable (2) from holder (3).
Only left: Remove cable (1) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

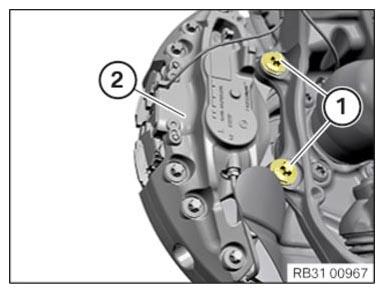

Loosen screws (1).
Release the brake caliper (2) from the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

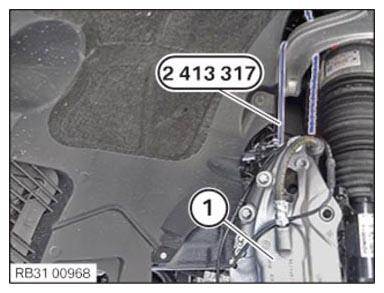

Tie up the brake caliper (1) with the special tool 2 413 317.
NOTE: Do not let the brake caliper on the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
