If installed: Remove the auxiliary heater

Removing the front section of the front wheel arch cover

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

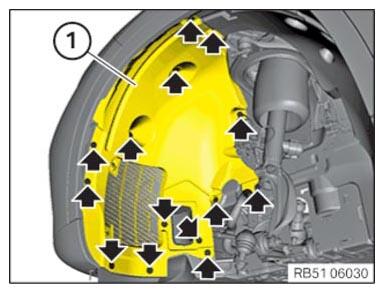

Remove screws (arrows).
Feed out the front section of wheel arch cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

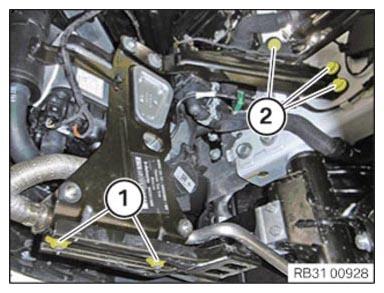

Loosen nuts (1).
Loosen screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

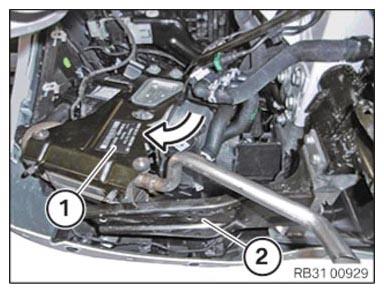

Release the stationary heating system (1) from the bracket (2).
Set pre-heating (1) in arrow direction to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
