Fastening transmission oil lines
Fastening transmission oil lines

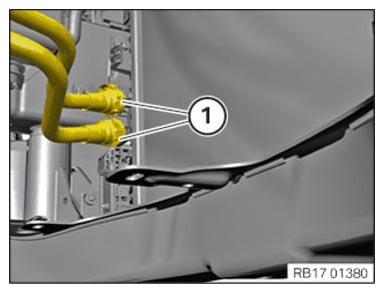

Connect and lock the transmission oil lines (1).
Courtesy of BMW OF NORTH AMERICA, INC.

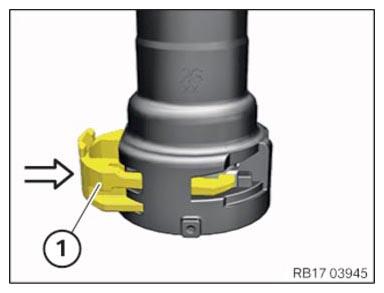

Press lock (1) in the arrow direction and lock it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
