Detaching the acoustic cover from the oil sump
Detaching the acoustic cover from the oil sump

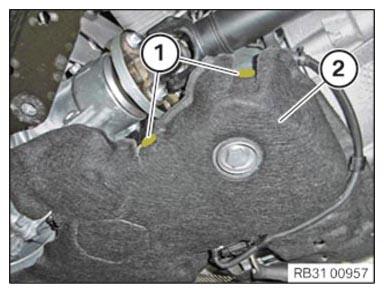

Release the expanding rivet (1) from the acoustic cover (2).
Courtesy of BMW OF NORTH AMERICA, INC.

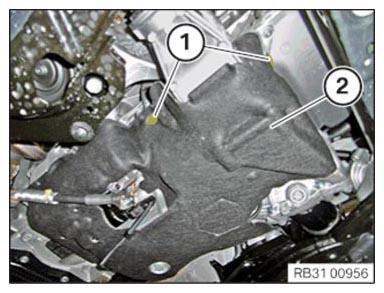

Loosen the expanding rivet (1).
Detach the acoustic cover (2) from the front axle transmission.
NOTE:
The acoustic cover remains on the vehicle.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
