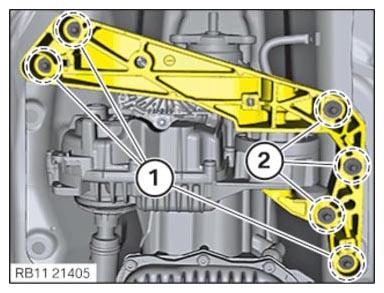

Attaching transmission cross member
- Hand-tighten the bolts (1).
- Hand-tighten the bolts (2).

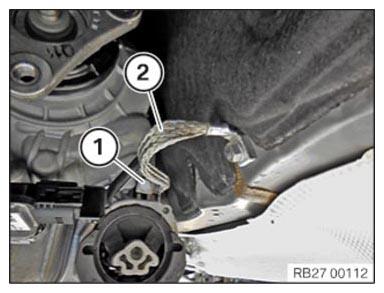

- Install the ground strap (2).
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Grounding strap/grounding cable to transmission/body M8 Tightening torque 19 Nm - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm
