Removing the catalytic converter for cylinders 5 through 8

Precondition

Ignition is switched off.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Preliminary work

Refer to REMOVING THE LEFT AND RIGHT UNDERSHIELD (TANK COVER) .
Refer to REMOVING THE REAR LEFT AND RIGHT TENSION STRUT .
Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
Refer to REMOVING EXHAUST SYSTEM .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
Refer to REMOVING THE LEFT LAMBDA OXYGEN SENSOR .
Refer to REMOVING THE LEFT INTAKE SILENCER BRACKET .
Refer to REMOVING UPPER HEAT SHIELD .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
Refer to REMOVING COVER FOR THE DME CONTROL UNIT ON LEFT .
Refer to REMOVING THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
Refer to REMOVING THE HOLDER FOR THE DME CONTROL UNIT ON THE LEFT .
Refer to REMOVING THE LEFT OXYGEN SENSOR MONITOR .

NOTE: RISK OF DAMAGE
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.

Remove and install the gasoline particulate filter without damaging it and without applying external force.
Avoid impacts/knocks to the gasoline particulate filter (e.g. by tools, falling down, hard contact with base).

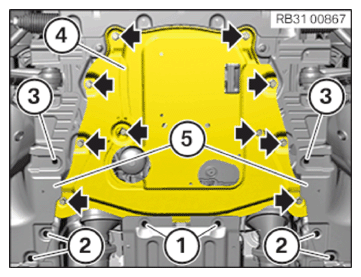

Loosen screws (1) to (3).
Remove screws (arrows).
Feed out and remove the thrust field (4) in the area (5) of the wheel arch trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially releasing the catalytic converter for cylinders 5 to 8 at the bottom
WARNING:
Hot exhaust system.
Risk of burning!
- Any work must exclusively be carried out with an exhaust system that has cooled down.

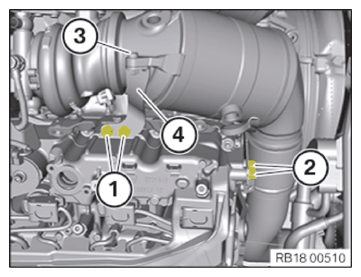

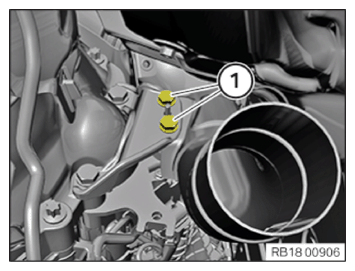

Release the nuts (1) at the bottom on the catalytic converter for cylinders 1 to 4.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

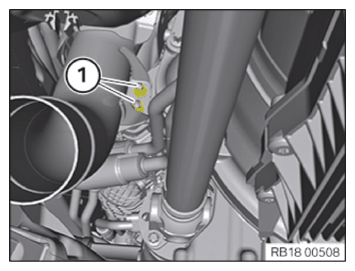

Release the nuts (1) at the bottom on the catalytic converter for cylinders 5 to 8.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

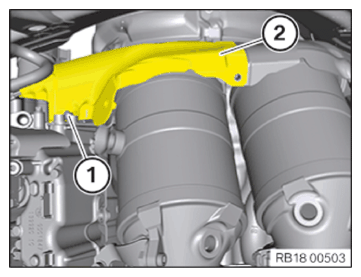

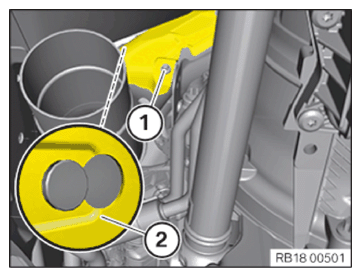

Release bottom screw (1) heat shield.
Release the heat shield (2) from the lower heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

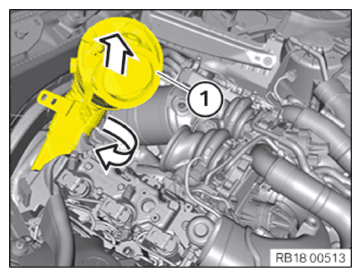

Release top screw (1) heat shield.
Release right heat shield (2) from the other heat shield.
Thread out and remove right heat shield (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

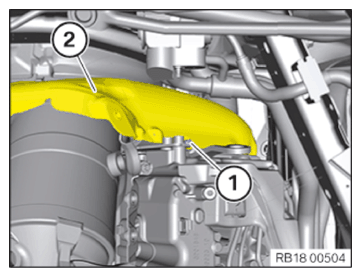

Release bottom screw (1) heat shield.
Release the heat shield (2) from the lower heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

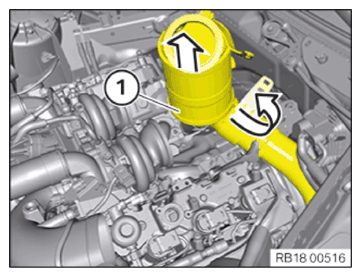

Release top screw (1) heat shield.
Release left heat shield (2) from the other heat shields.
Feed out left heat shield (2) to the top and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

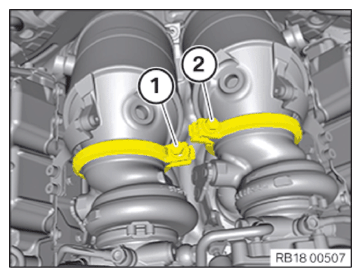

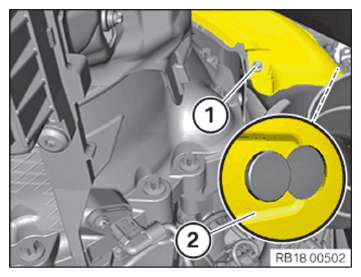

Loosen circlip (1) and remove.
Loosen circlip (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

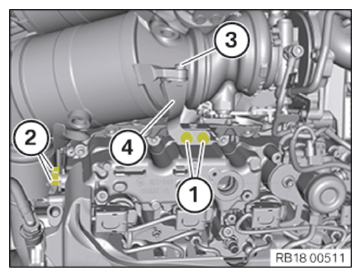

Loosen screws (1).
Loosen screws (2).
Loosen screw (3).
Remove holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Loosen screws (2).
Loosen screw (3).
Remove holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

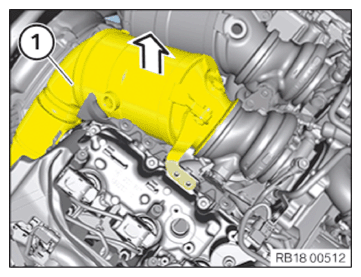

Remove the catalytic converter (1) for the cylinders 1 to 4 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew and remove the catalytic converter (1) for the cylinders 1 to 4 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

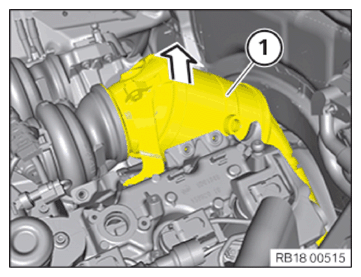

Remove the catalytic converter (1) for the cylinders 5 to 8 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew and remove the catalytic converter (1) for the cylinders 5 to 8 in arrow direction.
