Removing the blow-off valve of cylinder bank 2

Precondition

• Ignition is switched off.

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING BOTH INTAKE FILTER HOUSINGS .
• Refer to REMOVING THE CARRIER PLATE .
• Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
• Refer to PARTIALLY REMOVING THE LEFT ENGINE VENTILATION LINE .
• Refer to REMOVING LEFT CLEAN AIR PIPE .

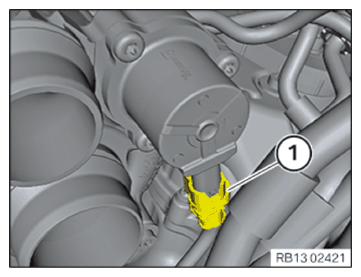

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

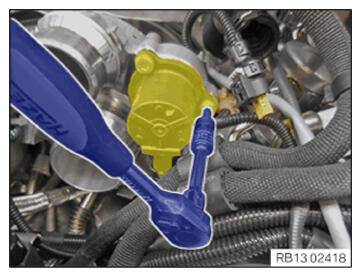

• Release the screws.

  Courtesy of BMW OF NORTH AMERICA, INC.

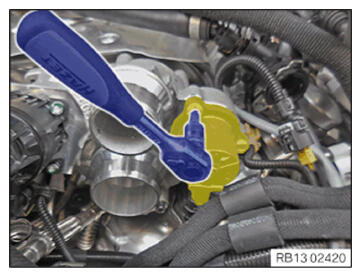

• Release the screws.

  Courtesy of BMW OF NORTH AMERICA, INC.

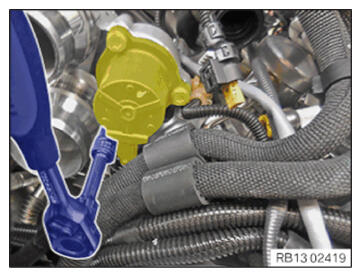

• Release the screws.
• Pull out the blow-off valve of the cylinder bank 2 and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.
