Installing the blow-off valve of cylinder bank 2

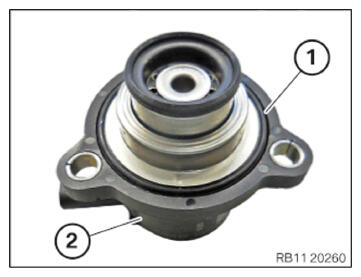

• Check the seal (1) for damage. If necessary, replace the blow-off valve (2).

  Parts:  Blow-off valve

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the blow-off valve of cylinder bank 2.
• Position all screws manually.

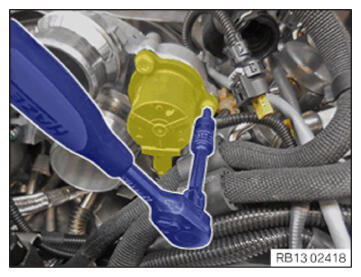

• Tighten screw.
  TIGHTENING TORQUE SPECIFICATIONS



  Blow-off valve to turbocharger
  M6	tightening torque	9±1 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

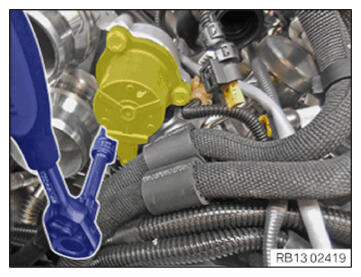

• Tighten screw.
  TIGHTENING TORQUE SPECIFICATIONS



  Blow-off valve to turbocharger
  M6	tightening torque	9±1 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

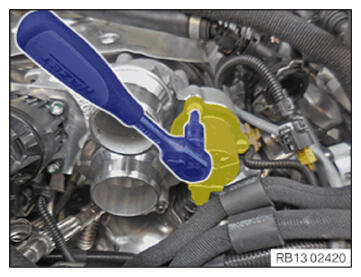

• Tighten screw.
  TIGHTENING TORQUE SPECIFICATIONS



  Blow-off valve to turbocharger
  M6	tightening torque	9±1 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

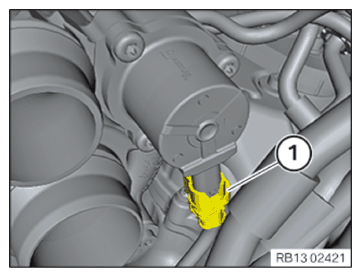

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT CLEAN AIR PIPE .
• Refer to INSTALLING THE LEFT ENGINE VENTILATION LINE (PARTIALLY REMOVED) .
• Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE TURBOCHARGER .
• Refer to INSTALLING THE CARRIER PLATE .
• Refer to INSTALLING BOTH INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
