Installing rear door trim panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Check whether the clips (1) are present and have damage.
Damaged or missing clips (1) must be replaced.
The clips (1) must not be engaged. The disengaged state is shown.
- Install the door trim panel.
- Attach the Bowden cable (1) of the door opener on the door lock (3).
- Attach the Bowden cable (1) of the door opener on the counter support (2).
- Connect connectors (4) and lock.
- Insert the door trim panel (1) on the window channel strip.
- Clip in the door trim panel (1) onto the clips (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
door trim panel screw Tightening torque 5 Nm - Tighten the screw and mount the cover (1).TIGHTENING TORQUES SPECIFICATION
door trim panel screw Tightening torque 5 Nm - Tighten the screw and mount the cover (1).TIGHTENING TORQUES SPECIFICATION
Door trim panel screw Tightening torque 5 Nm Tightening the screws on the rear handle (G06)

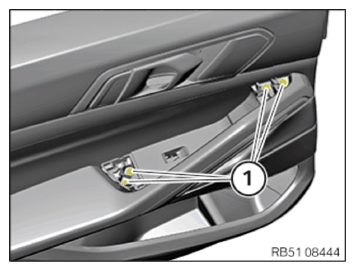

- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION

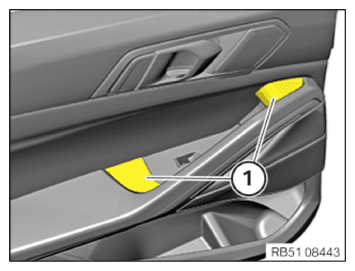

Door trim panel screw Tightening torque 5 Nm - Clip in the covers (1).
