Installing the bracket for the DME control unit

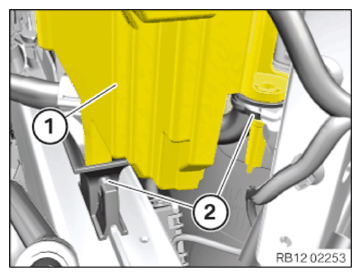

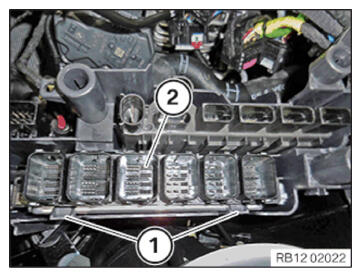

Be sure that the bracket (1) for the lower DDE control unit is correctly inserted into the mounts (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the bracket for the DME control unit.
Secure the cable clips (2).

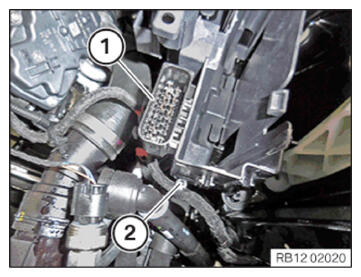

Mount the connector (1) on the bracket for the DME control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

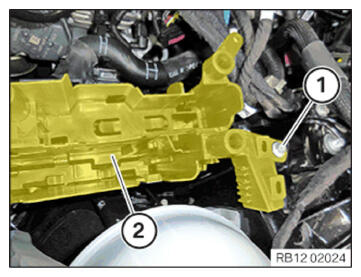

Install the bracket (2) for the DME control unit.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Holder for control units to strut tower
Hexagon screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and install the integrated power supply module (PDM) (2).
Make sure the locking mechanism (1) engages audibly.
The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

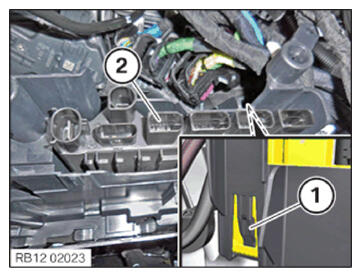

Feed in and install DME control unit (2).
Ensure the locking mechanisms (1) engage correctly.
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

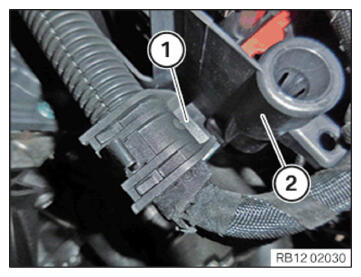

Fasten the cable bracket (1) to the bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

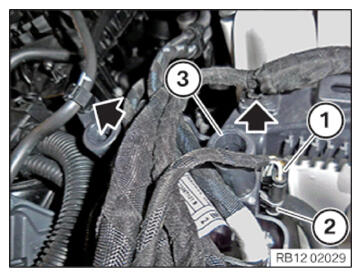

Secure the clamps (arrows).
Attach the connector (2) to the holder (3) and lock.
The connector (2) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

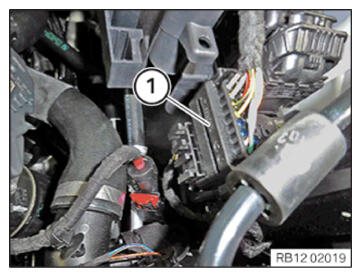

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

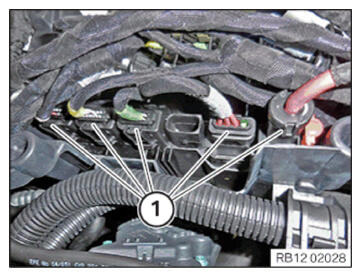

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

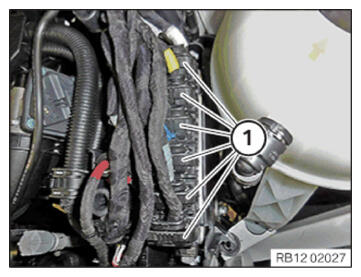

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
