Install the integrated power supply module (PDM)

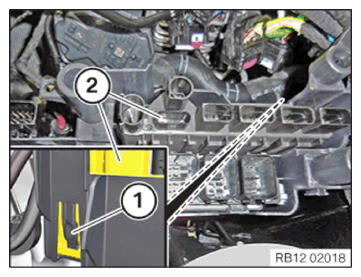

• Insert and install the integrated power supply module (PDM) (2).

  The lock (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The number of connectors on the described component may vary depending on the equipment version.
  If necessary unlock and disconnect, or connect and lock, all other connectors.

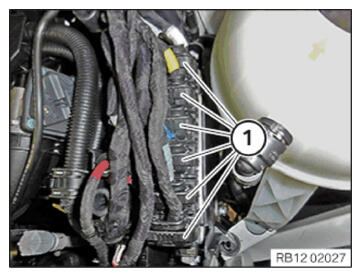

• Connect connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

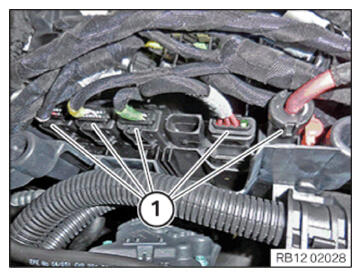

• Connect connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
