Installing the holder for the Digital Motor Electronics control unit on the right

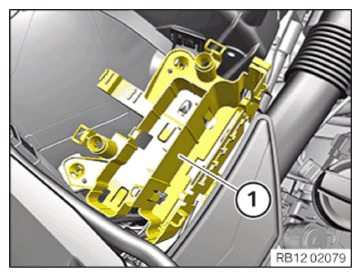

Insert and position the bracket (1) for the DME control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

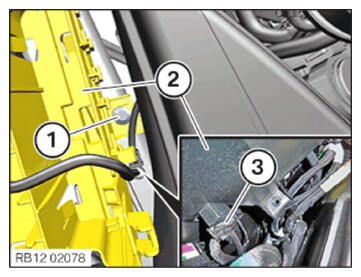

Secure clamps (3).
Install the bracket (2) for the DME control unit.

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Control unit holder
Hexagon screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

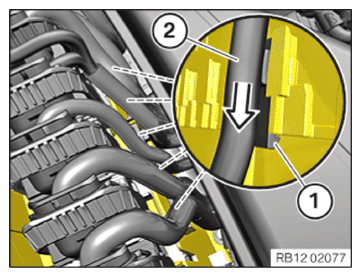

Insert and lock the wiring harness section (2) in arrow direction.
The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

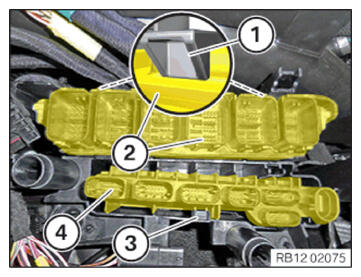

Insert and install the integrated power supply module (PDM) (4).
The lock (3) must audibly engage.
Feed in and install DME control unit (2).
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

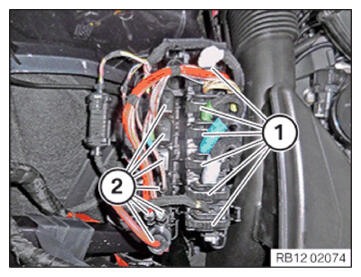

Connect connectors (2) and lock.
The connectors (2) must engage audibly
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

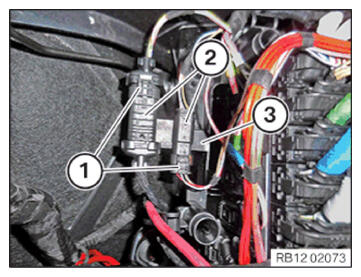

Attach the connector (2) to the holder (3) and lock.
The connectors (2) must engage audibly.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

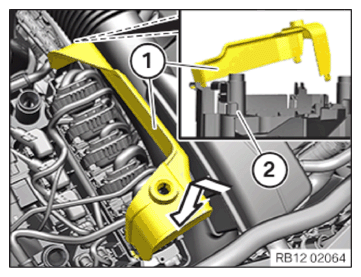

Feed in the cover (1) in direction of arrow on the bracket (2) and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

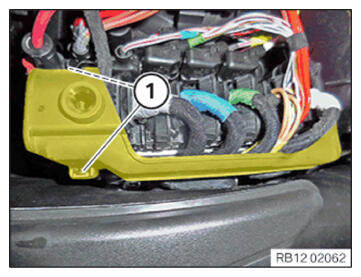

Ensure that the locking mechanisms (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
