Installing the DME control unit of cylinders 5 to 8

NOTE: TECHNICAL INFORMATION
If the DDE control unit or an injector has been replaced, it will also be necessary to carry out injection quantity compensation. The adjustment value (7-character letter code/number code) for the injection quantity compensation is engraved on each injector.

NOTE: TECHNICAL INFORMATION
Observe notes for removal and replacement of control units.
For additional information see: INSTRUCTIONS FOR REMOVAL AND REPLACEMENT OF CONTROL UNITS .

NOTE: TECHNICAL INFORMATION
Control unit must be programed after it is replaced.
For additional information see: ENCODE/PROGRAM CONTROL UNIT(S) .

NOTE: TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and deleted if necessary.

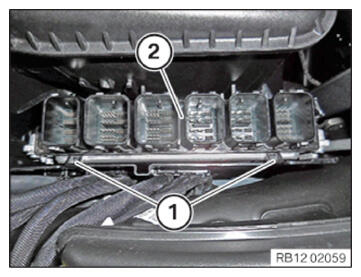

Feed in and install DME control unit (2).
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

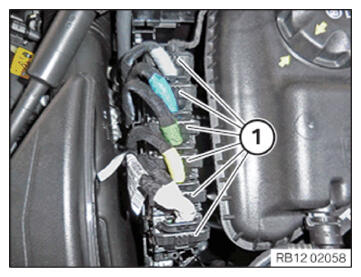

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

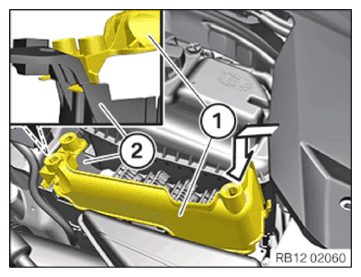

Feed the cover (1) in the arrow direction into the holder (2) and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

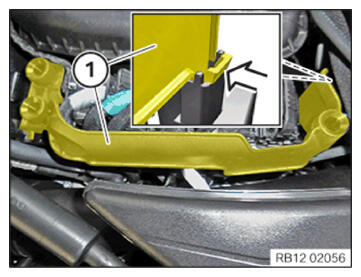

Lock cover (1) (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
