For replacement: Install the holder for the LED module of the light carpet

Remove the LED module for the light carpet

• Unscrew the adjustment screw (1) from the LED module (3) by turning it counter-clockwise.
• Loosen the detent (2).
• Guide the LED module (3) out of the guide (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install the LED module for the light carpet

• Position the LED module (3) in the guide (4).
• Press LED module (3) into detent (2).
• Turn the adjustment screw (1) clockwise to screw it into the LED module (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

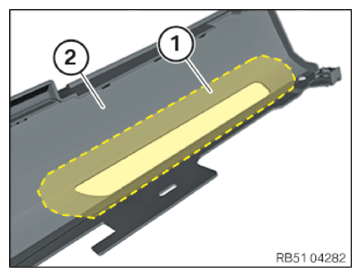

• Clean the area (1) on the door sill trim panel (2).
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
  For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .

  Courtesy of BMW OF NORTH AMERICA, INC.

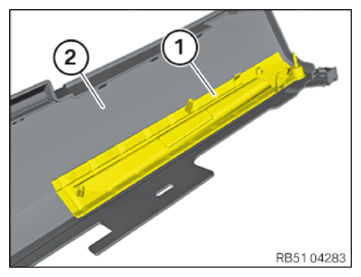

• Remove the liner from the holder (1).
• Insert the holder (1) into the door sill trim panel (2) and press evenly across the entire adhesive area.
