Installing the trim for the bottom rear window frame

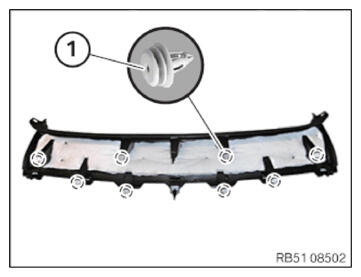

• Check clips (1) for damage and, if necessary, replace them.

  Courtesy of BMW OF NORTH AMERICA, INC.

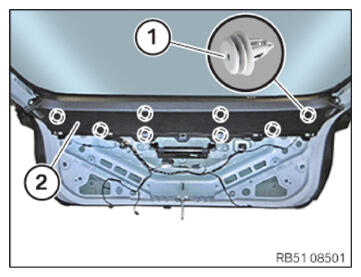

• Position trim (1) for the bottom rear window frame on clips (2) and clip it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAMES .
• Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .
