Remove the right and left seat belt finisher strip trim
NOTE:
Perform the steps on the left and right side.
Removing the cover of the seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.

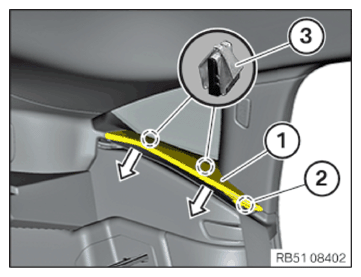

- Release the cover of the seat belt finisher strip (1) at the detent (2).
- Unclip the cover of the seat belt finisher strip (1) at the clamps (3) and thread it out.
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Perform the steps on the right and left side.
- Release the cover of the seat belt finisher strip (1) at the detent (2).
- Unclip the cover of the seat belt finisher strip (1) at the clamps (3) and thread it out.
