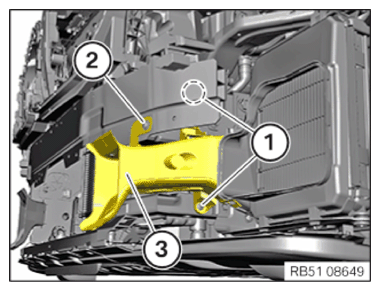

Install left and right brake ventilation duct

• Feed in and install the brake ventilation duct (3).
• Mount the expanding rivets (1).
• Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

Air flap control/brake ventilation duct
Screw	tightening torque	4 Nm
