Installing front wheel arch trim

Check

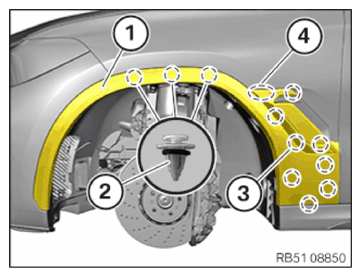

• Check the clips (2) for damage and replace if necessary.

  Observe the sealing ring, it must not be missing or damaged.

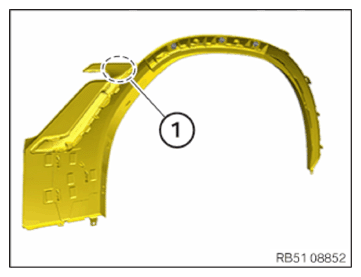

• Check detents (1) and (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) and (3) of the wheel arch trim are damaged.

Measure

• Replace wheel arch trim.
• Clean bonding surface (4).
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

  Courtesy of BMW OF NORTH AMERICA, INC.

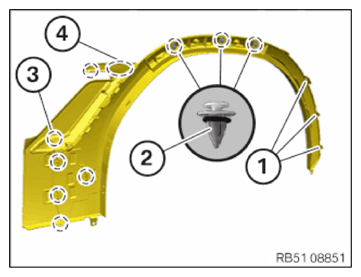

• Remove the liner (protective film of the adhesive strip) from the trim on the side panel in area (4).
• Install wheel arch trim (1) and engage it into detents (3).
• Press wheel arch trim (1) on the adhesive strips in area (4).
• Engage wheel arch trim (1) into clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

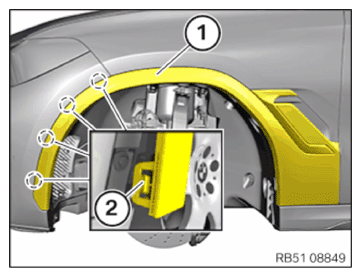

• Engage wheel arch trim (1) into detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR WHEEL ARCH TRIM .
• Refer to INSTALLING THE REAR DOOR .
• Refer to ADJUSTING THE LED MODULE FOR THE LIGHT CARPET .
