Remove front left wheel
Removing the wheel
NOTE:
TECHNICAL INFORMATION

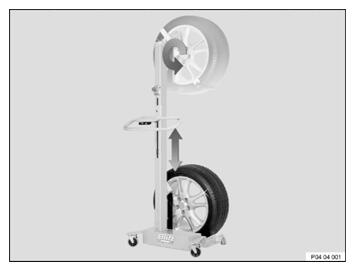

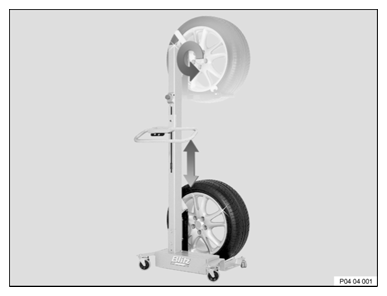

A wheel lifter is recommended for easier wheel removal and installation without applying force (see applicable Dealer Equipment Catalog).
A wheel lifter is recommended for easier wheel removal and installation without applying force (see applicable Dealer Equipment Catalog).
- If several wheels are removed simultaneously: Use a piece of chalk to mark on each tire the axle and side on which the corresponding wheel is fitted.

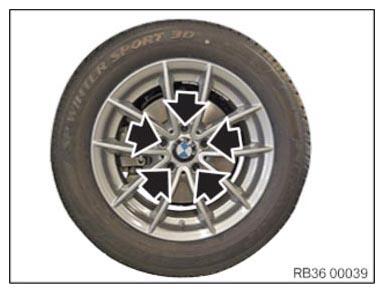

- Release the lug bolts (arrows) crosswise and remove the wheel.
Use the matching adapter from tool set 0 492 518 (36 1 300) (wheel bolt adapter set) to release and tighten down the lug bolt with security code.
