Release the intake pipe from the connecting piece

CAUTION: Residual pressure in the air conditioning system.
Injury hazard!

Wear safety goggles and protective gloves when disconnecting the refrigerant line.
Close the refrigerant lines with seal plugs.

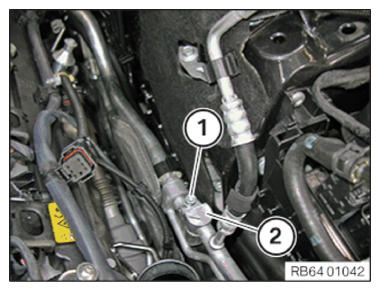

Open the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Remove the intake pipe (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
