Release left fuel feed line
Release left fuel feed line

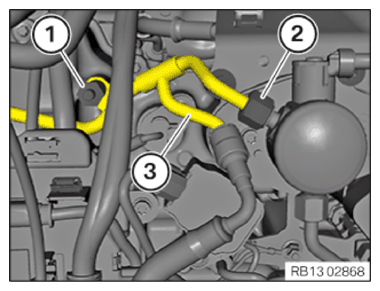

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Release nut (2).
Loosen the double bolt screw (1).
Set aside the fuel supply line (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
