Partially installing the external engine oil cooler
Partially installing the external engine oil cooler

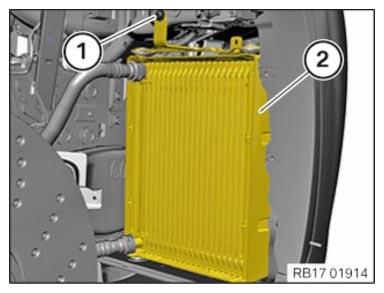

Position external engine oil cooler (2) with the air duct downwards in the rubber mounts.
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
Holder for the external radiator to support
M6x20
Tightening torque
11.8 Nm
