Installing the front wheel arch trim on the door sill (partially removed)

Check the clips (2) for damage and replace where required.

Check sealing ring for damage, replace if necessary.

The sealing ring must not be damaged or missing.

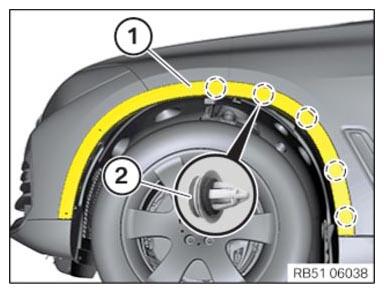

Position the wheel arch trim (1) and engage at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check the clips (2) and sealing ring for damage and, if necessary, replace them.

The sealing ring must not be damaged or missing.

Check the detents for damage; if necessary, replace the wheel arch trim (1).

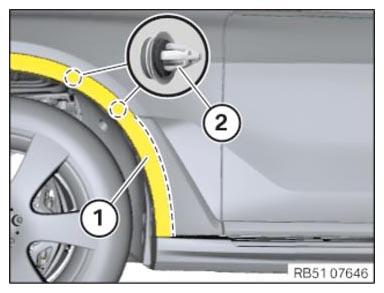

Position the wheel arch trim (1) and engage at the clips (2).

Engage the wheel arch trim (1) at the detents along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.
