Fastening the engine ventilation line of cylinder bank 2

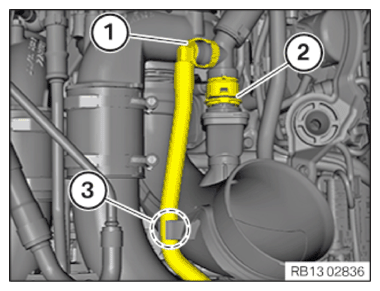

Clip in the tank vent line (1) in the area (2) in the holder on the clean air pipe.
Connect and lock the tank vent line (1).
Connect and lock the engine ventilation line of the cylinder bank 2 (2).
Retaining clip must lock in place audibly.
