Disconnect the plug connections of the injectors of cylinder bank 1
NOTE:

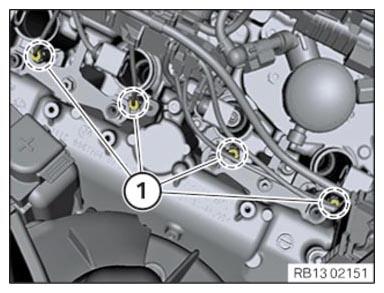

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Unlock and disconnect the plug connections of the injectors of cylinder bank 1 (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
