Attaching the right fuel supply line

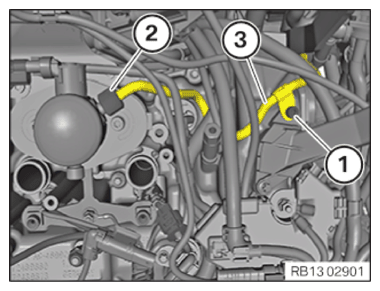

- Position line (3).
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATION
Fuel supply line/rail to high pressure pump Nut tightening torque 30 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Fuel supply line to cylinder head Hexagon screw
M6x16Tightening torque 10 Nm - Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Fuel delivery line Double banjo bolt
M6/screw M6x16tightening torque 10 Nm
