Attaching the intake pipe on the air conditioning compressor

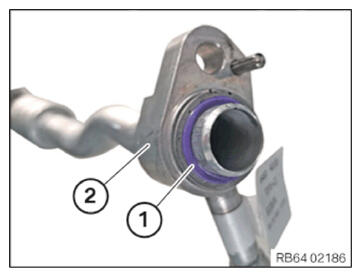

Replace the sealing ring (1) on the intake pipe (2).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Align and correctly position the intake pipe (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Refrigerant line to connecting piece
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
