Removing the acoustic cover
Removing the acoustic cover
NOTE:
RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.
- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.
- Unclip acoustic cover (1) from the top and remove.
Removing the intake filter housing on the left

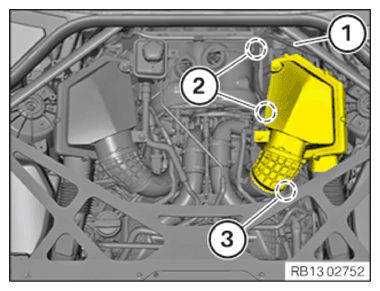

- Release the circlip (3).
- Unclip tank ventilation line (1) from holders in areas (2).
- Release the left intake filter housing (1) upwards out of the rubber mounts (arrows).
- Disconnect the left intake filter housing (1) from the clean air pipe.

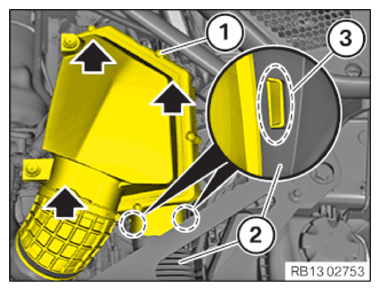

- Disconnect the left intake filter housing (1) with tabs (3) from unfiltered-air duct (2).
- Guide out and remove the left intake filter housing (1).
