Install left intake silencer housing

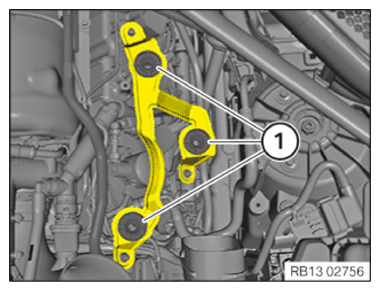

Check if rubber mount (1) fits correctly in the holder.
Check the rubber mount (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

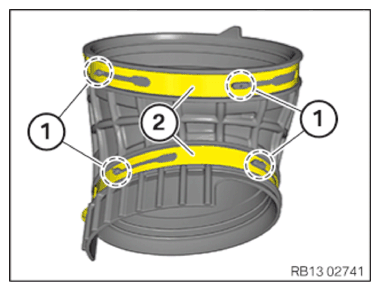

Make sure that the rubber guides are in the areas (1) on the stops of the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and position the left intake filter housing (1).
Connect the left intake filter housing (1) with tabs (3) to unfiltered-air duct (2) and lock it.
Position the left intake filter housing (1) on the clean air pipe.
Install the left intake filter housing (1) and attach it in the rubber mounts (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten clamp (3).

TIGHTENING TORQUE SPECIFICATION

Bellows for clean air to clean air pipe
Clamp	Tightening torque	3 Nm

Clip tank ventilation line (1) into the holders in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

Check the detent pin (2) for damage and replace the acoustic cover if necessary.
Check the acoustic cover for a correct fit of the rubber mount (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Check rubber mount (1) for correct fit.
Check the detent pin (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the acoustic cover (1) into the holder.
