Fastening the upstream low-temperature coolant radiator

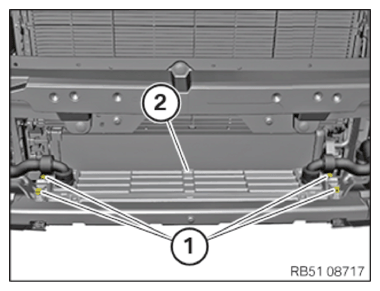

- Position the upstream low-temperature coolant radiator (2) correctly.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Upstream low-temperature coolant radiator to vertical connection |
| M6x40 screw |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
