Remove the clean air pipe of cylinder bank 1

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
• Refer to PARTIAL UNINSTALLATION OF THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .

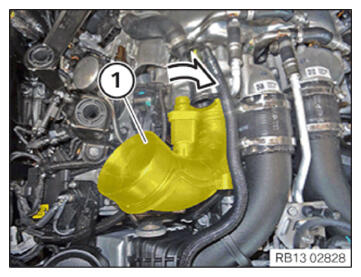

• Turn the clean air pipe of the cylinder bank 1 (1) to the right.

  Courtesy of BMW OF NORTH AMERICA, INC.

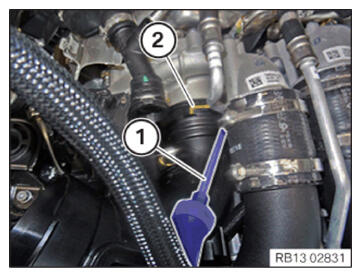

• Fix the retaining clip (2) with a suitable screwdriver in the locking position.

Courtesy of BMW OF NORTH AMERICA, INC.

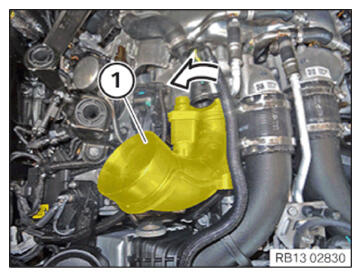

• Turn the clean air pipe of the cylinder bank 1 (1) to the left.

  Courtesy of BMW OF NORTH AMERICA, INC.

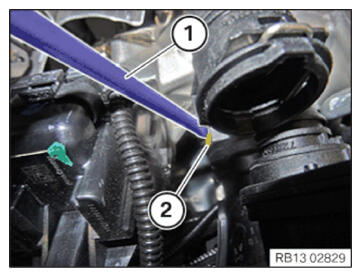

• Lift the retaining clip (2) with a suitable screwdriver (1) from the groove.

  Courtesy of BMW OF NORTH AMERICA, INC.

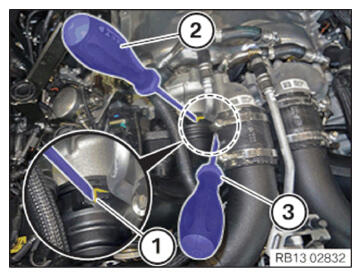

• Lift the retaining clip (1) with a suitable screwdriver (3) from the groove.
• Fix the retaining clip (1) with another suitable screwdriver (2) in the locking position.
• Feed out and remove the clean air pipe of the cylinder bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.
