Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

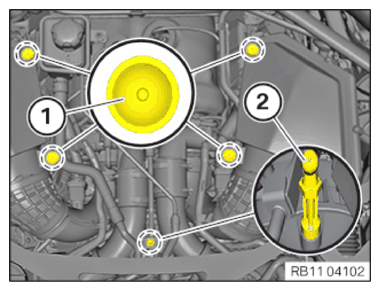

Check the detent pin (2) for damage and replace the acoustic cover if necessary.
Check the acoustic cover for a correct fit of the rubber mount (1).

Courtesy of BMW OF NORTH AMERICA, INC.

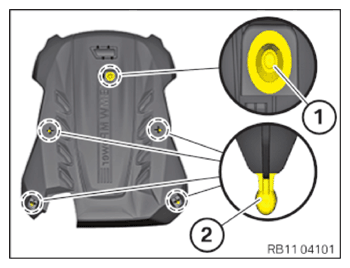

Check rubber mount (1) for correct fit.
Check the detent pin (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

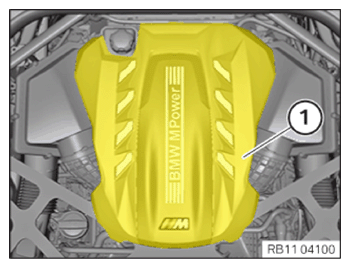

Clip in the acoustic cover (1) into the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
