Installing the protective plate on the front door

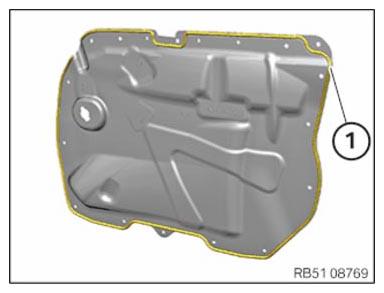

• Check the seal (1) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

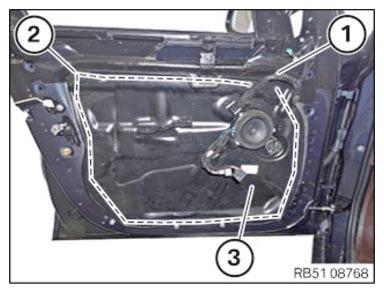

• Position the protective plate (3).
• Apply a drop of screw locking agent on the screw thread of the mounting bolt before screwing.
  ADHESIVE SPECIFICATIONS



  Screw lock Loctite Stick 243, medium strength

  10 ml, Bottle

  83192210339

• Tighten all the screws along the line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Protective plate to door
  M6 screw	tightening torque	10 Nm
  M8 screw	tightening torque	20 Nm

• Feed in the wiring harness (1) and connect and lock all the connectors.

Disconnecting all battery ground leads

• Refer to CONNECTING ALL BATTERY GROUND LEADS .

Courtesy of BMW OF NORTH AMERICA, INC.
