Installing the carrier plate
Installing the carrier plate

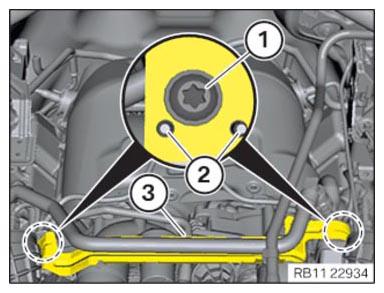

Insert the carrier plate (3) and position it on the centering pins (2).
Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Carrier plate to the cylinder head covers
M6x12 screw
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

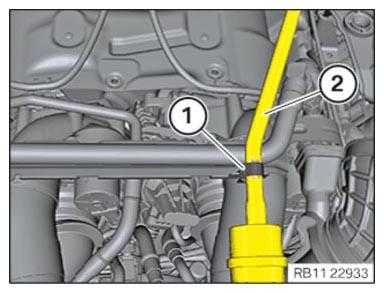

Clip in the purge air line (2) in the holder (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
