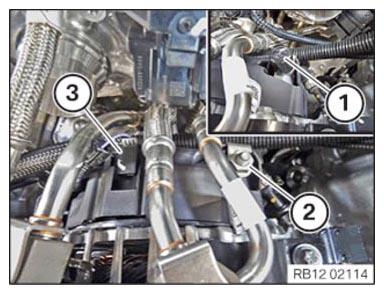

Securing the wiring harness section of the cylinder head cover on the right

• Connect connectors (3) and lock.

  The connector (3) must engage audibly.

• Tighten the nut (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Positive battery cable to alternator
  M8	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount cover (1) on nut (2).

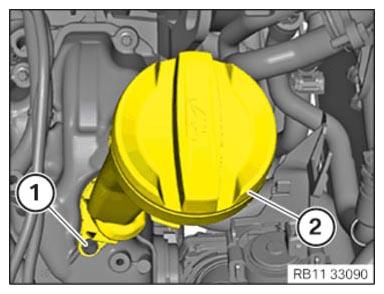

• Position oil filler neck (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Oil filler neck
  M6x16	tightening torque  10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fix clip (2).
• Tighten down screw (4).
  TIGHTENING TORQUE SPECIFICATIONS



  Hexagon screw M6 with threaded bolt M5
  Screw M6 with threaded bolt M5	tightening torque  10 Nm

• Position the grounding point (5).
• Tighten nut (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Ground cable on cylinder head cover/ground pin
  Nut M5	tightening torque  4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Wiring harness to cylinder head cover
  M6x16 screw	tightening torque  10 Nm

• Position the wiring harness (3).
• Fix wiring harness mountings (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Wiring harness to cylinder head cover
  M6x16 screw	tightening torque  10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

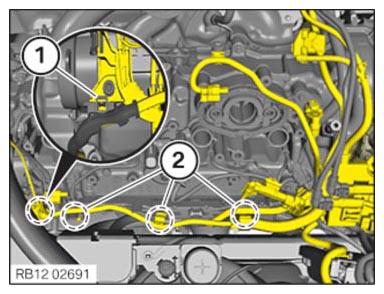

• Secure the wiring harness mounting (1).
• Fix wiring harness mountings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the wiring harness mounting (5).
• Secure the wiring harness of the integrated power supply module (4) to fixtures (3).
• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Wiring harness to cylinder head cover
  M6x16 screw	tightening torque  10 Nm

• Clip in transmission wiring harness (1).

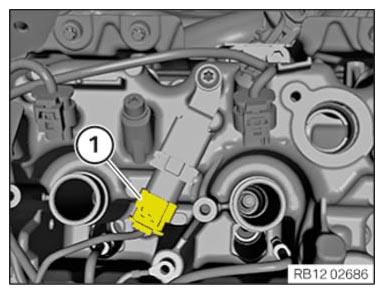

• Connect and lock the connector on pressure sensor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

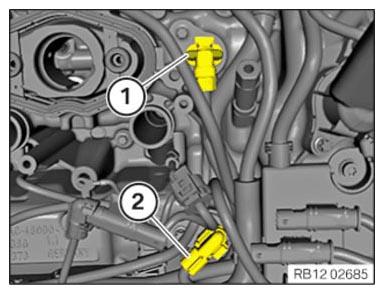

• Connect and lock connector (2) on the intake camshaft sensor of cylinder bank 1.
• Connect and lock connector (1) on the exhaust camshaft sensor of cylinder bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

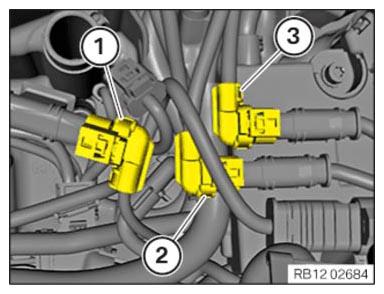

• Connect and lock connector (1) to (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
