Removing storage compartment at left

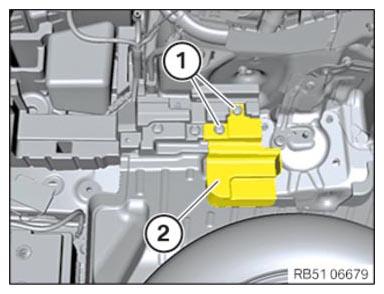

• Release the expanding rivets (1) and remove the cover. 2

  Courtesy of BMW OF NORTH AMERICA, INC.

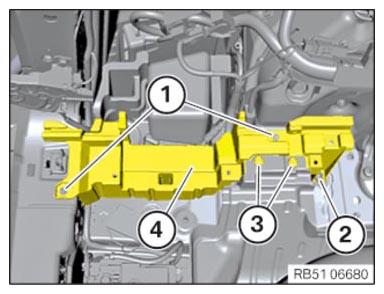

• Loosen screws (1) and (2).
• Release the expanding rivets (3) and feed out the trim (4) upwards and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

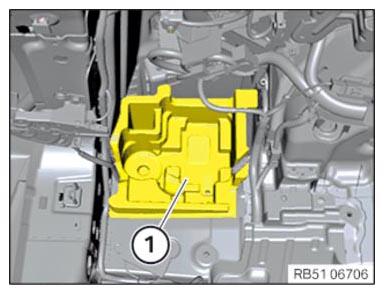

• Feed out left storage compartment (1) to the top and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
