Removing carrier plate
Removing carrier plate

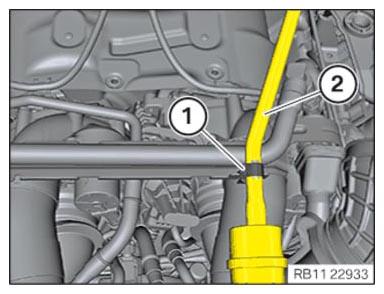

Unclip the purge air line (2) from the holder (1).
Courtesy of BMW OF NORTH AMERICA, INC.

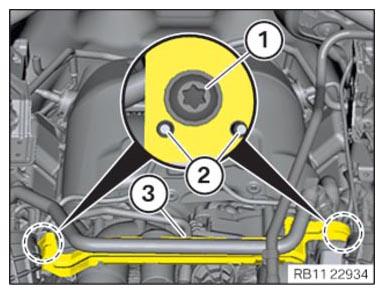

Loosen screws (1).
Feed out the carrier plate (3) from the centering pins (2) and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
