Installing the left and right rear diffuser

NOTE: Description is for left component only. Procedure on the right side is identical.

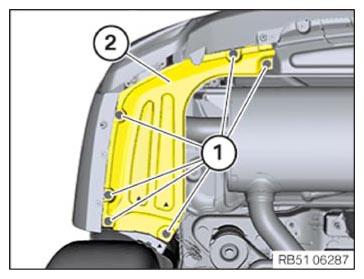

• Feed in and correctly position the rear diffuser (2).
• Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Undershield/frame
Hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
