Removing the engine control unit cover

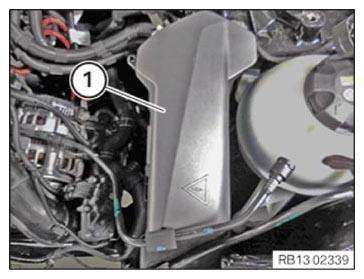

Pull, feed out and remove the cover (1) of the engine control unit from the rubber mounts.

G14415889

Courtesy of BMW OF NORTH AMERICA, INC.
