Removing the center cowl upper part
Removing the center cowl upper part

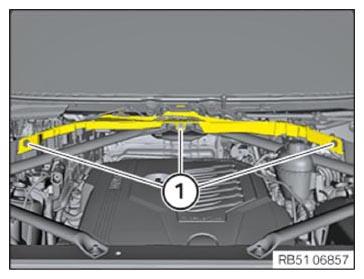

Loosen screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

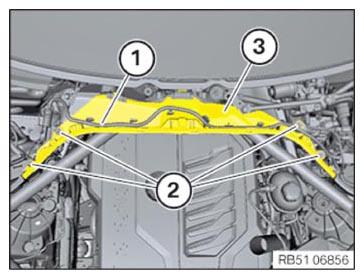

Release the wire (1) with the bracket from the center cowl upper part (3).
Loosen screws (2).
Remove the center cowl upper part (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
