Remove the tension strut at the shock tower on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove trailing link at spring bolt
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

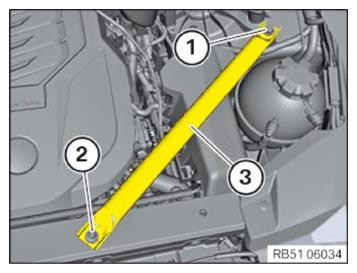

- Loosen screws (1) and (2).
- Remove tension strut (3) at the shock tower upwards.
