Replacement: Prepare the coolant pump
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.

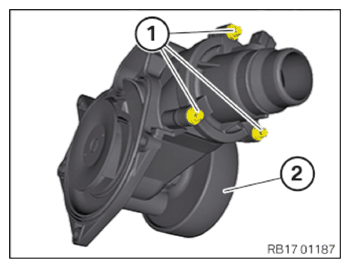

- Loosen screws (1) .
- Remove the thermostat.NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents. - Clean sealing surface (1) .
- Remove the seal (3) from the thermostat (2) .
- Replace the seal (3)
.
Parts: Seal
- Position thermostat housing.
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Thermostat housing on the coolant pump | ||
|---|---|---|
| M6x25 screw | tightening torque | 8 Nm |
