Install exhaust system
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Component with heavy weight
.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Grinding dust from grinding of components
.
Hazardous to health!
Hazardous to health!
- Directly draw off the grinding dust.
- Ensure adequate ventilation.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

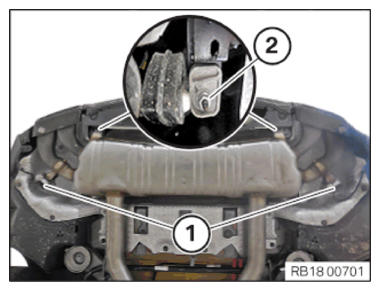

- Check all the rubber mounts (1) of the exhaust system for damage.
- Replaced damaged rubber mounts.
Parts: Rubber mount
CAUTION: Shavings resulting from sawing or grinding components .
Injury hazard!- Conduct all work in appropriate personal protective equipment only.
- Wear safety goggles and hand protection.
- Version A:
Open the weld seam (1) with a conventional tool.
- Remove the circlip (2).
- Replace the clamps to the left and right.
Parts: Clamps
- Feed in exhaust system with three persons.
- Connect exhaust system to catalytic converters.
- Replace nuts (2).
Parts: Nuts
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Rear silencer to body/bumper support M8
Replace nuts.Tightening torque 19 Nm - Connect and lock the connectors (1) at left and right.
The connectors (1) must engage audibly.
- Replace the screw (1).
Parts: Screw
- Tighten the screw (1) to the left of the rear axle support.TIGHTENING TORQUE SPECIFICATIONS
Exhaust system to rear axle carrier M8x25
Replace screw.tightening torque 28 Nm - Replace the screw (1).
Parts: Screw
- Tighten the screw (1) to the right of the rear axle support.TIGHTENING TORQUE SPECIFICATIONS
Exhaust system to rear axle carrier M8x25
Replace screw.tightening torque 28 Nm - Version A:
Tighten the clamp (1) on the left.
TIGHTENING TORQUE SPECIFICATIONSExhaust system/front silencer to catalytic converter cl.
If necessary, replace clamp.tightening torque 47 Nm - Version A:
Tighten the clamp (1) on the right.
TIGHTENING TORQUE SPECIFICATIONSExhaust system/front silencer to catalytic converter cl.
If necessary, replace clamp.tightening torque 47 Nm - Version B:
Replace the seals (1).
Parts: Seals
- Version B:
Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).
- Version B:
Replace nuts (1).
Parts: Nuts
- Version B:
Tighten nuts (1).
- Version B:
Tighten the union nuts (1).
- Version B:
Tighten the union nuts (1).
Follow-up work
