Install the lower oil pan section
WARNING: This page is about a different car, the 2022 BMW X7, 2021 BMW X7, 2020 BMW X7, and 2019 BMW X7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
- Clean the sealing surface in the area of (1) with the special tool 0 495 102 (11 4 470) .
- Remove the seal (1).
- Clean sealing surfaces with special tool 0 495 102 (11 4 470) .
- Replace the seal (1).
Parts: Seal

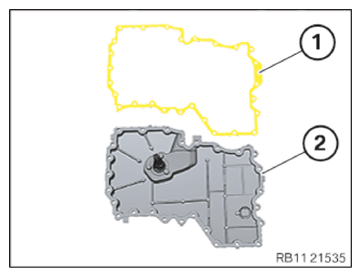

- Position the seal (1) on the lower oil pan section (2).
- Position the lower oil pan section.
- Replace screws.
Parts: Screws

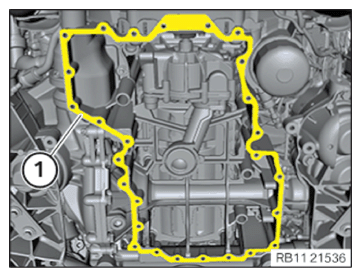

- Tighten the screws in this area (1).
TIGHTENING TORQUES SPECIFICATION
| Lower oil pan section to upper oil pan section | ||
|---|---|---|
| M8 Replace screws. |
tightening torque | 27 Nm |
- Connect connectors (2) and lock.
- Attach the cable clip (1).
Follow-up work
- Refer to TIGHTENING THE OIL DRAIN PLUG .
- Refer to REMOVING THE OIL FILLER CAP .
- Refer to FILLING ENGINE OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
- Refer to CHECKING ENGINE OIL LEVEL .
